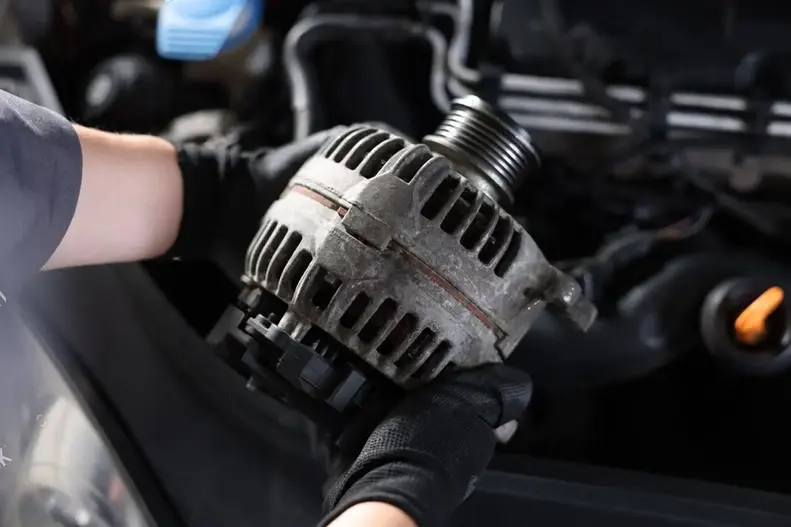

How to Bench Test a Dynamo – Complete Guide to Detecting Faults and Solutions
The car dynamo or alternator is the beating heart of your vehicle's electrical system, responsible for generating the electrical power needed to operate all systems and charge the battery while driving. When the dynamo fails or its performance weakens, a series of problems begins that could leave you stranded on the roadside.
In this comprehensive guide, we'll explore everything about how to bench test a dynamo, from signs of damage to precise testing methods, from causes of faults to preventive maintenance tips, to help you maintain a reliable charging system and stable electrical performance in your car.
What is a Car Dynamo and What is its Function?
The Dynamo's Role in Charging the Battery
The car dynamo or alternator is an electromechanical device that converts mechanical energy from the engine into electrical energy in the form of alternating current, which is later converted to direct current to charge the battery and operate electrical systems. The primary function of the dynamo is to compensate for the energy consumed by the battery in starting the engine and maintain its full charge while driving. Without an efficiently working dynamo, the battery will drain quickly, and the car will stop working.
How the Charging System Works in a Car
The charging system consists of the dynamo, voltage regulator, battery, and connecting wires. When the engine runs, the drive belt (dynamo belt) turns the dynamo pulley, generating electricity at a voltage typically ranging between 13.5 and 14.5 volts. The voltage regulator controls the amount of electricity produced to prevent battery overcharging. This integrated system ensures that all electrical systems receive the necessary power while the battery remains fully charged.
When Do You Need to Bench Test a Dynamo?
Effect of Weak Dynamo on Car Performance
Weak dynamo performance has direct and serious effects on the car. When the dynamo doesn't produce sufficient power, the battery begins compensating for the shortage, gradually draining its charge. You'll notice weakness in the lighting, slow response from the electric windows, and difficulty starting the car. In advanced cases, the car may stop working completely even with a good battery. Therefore, learning how to bench test a dynamo periodically is essential to maintain stable electrical performance.
The Difference Between Battery Failure and Dynamo Failure
Many drivers confuse symptoms of a weak battery and a faulty dynamo because both cause starting difficulties. The basic difference: if the car works after external charging but stops after driving for a short period, the problem is in the dynamo. But if it doesn't work even after charging or stops immediately, the problem is usually in the battery itself. A simple test: start the car, then disconnect the positive battery terminal; if the engine stops, the dynamo isn't working. (Note: this test may harm modern electronic systems, so it's better to use a multimeter.
Signs of Car Dynamo Damage
Weak or Flickering Lights
One of the clearest signs of car dynamo damage is weak front or interior lighting, especially when operating additional devices like air conditioning or wipers. You may notice that the lights dim and brighten according to engine rotation speed. This fluctuation in lighting intensity clearly indicates that the dynamo isn't producing stable and sufficient voltage, making the electrical system partially dependent on the battery.
Difficulty Starting the Car
If the car needs multiple attempts to start, or the engine seems to turn slowly when starting, the cause may be a weak dynamo that hasn't fully charged the battery. This problem worsens in the morning after a full night, when the battery has drained what remained of its charge throughout the night on backup systems.
Battery Light Appearing on Dashboard
The battery warning light (which looks like a small battery) on the dashboard isn't necessarily an indicator of battery failure, but often indicates a problem in the charging system, meaning the dynamo. If this light illuminates while driving, it means the control unit detected that the electrical voltage is lower than normal, a direct indicator of a weak or failed dynamo.
Continuous Weak Battery Charging
If you find yourself charging the battery repeatedly despite it being new, the problem isn't in the battery but in not receiving sufficient charge from the dynamo. You can confirm this by checking battery voltage after driving for 20 minutes; if it's less than 13.5 volts, this confirms the dynamo isn't doing its job in charging.
Symptoms of Dynamo Damage While Driving
Sudden Engine Stopping
In cases of complete dynamo failure, the engine may stop suddenly while driving when the battery is completely drained. This situation is very dangerous, especially on highways. You'll notice before stopping that all warning lights illuminate on the dashboard, electrical systems begin failing gradually, then the engine stops completely due to a lack of electricity to operate the ignition system.
Weak Electrical Systems Inside the Car
With a weak dynamo, you'll start noticing general weakness in all electrical systems: electric windows move slowly, air conditioning weakens in performance, the radio loses power, and even the electric steering wheel (in some cars) may become heavier. These combined symptoms clearly indicate a problem in the electrical power supply.
Fluctuations in Car Performance
Some modern cars that heavily depend on electronic systems may show fluctuations in engine performance itself when the dynamo is weak. Engine RPM may fluctuate when stopped, or the engine may suddenly lose power, because the control unit doesn't receive stable and sufficient voltage to work efficiently.
How to Bench Test a Dynamo Step by Step
Voltage Testing Using a Multimeter
This is the most accurate and reliable method for testing the dynamo. Follow these steps: First, set the multimeter to DC voltage measurement mode. Second, open the car hood and locate the battery. Third, place the red probe on the battery's positive terminal (+) and the black probe on the negative terminal (-). Fourth, record the reading with the engine off (should be around 12.4-12.7 volts). Fifth, start the engine and let it run at normal idle speed. Sixth, check the voltage again; it should rise to 13.5-14.5 volts. If it stays at 12 volts or less, the dynamo isn't charging. If it exceeds 15 volts, there's a problem with the voltage regulator.
Testing Battery Charging While the Engine is Running
After basic voltage testing, perform an additional test: with the engine running, turn on all electrical loads (lights, air conditioning, wipers, radio). Now check the voltage again; it should remain above 13 volts even with these loads. If it drops below that, the dynamo is weak and can't handle normal electrical loads.
Observing Lighting and Electrical Devices Performance
A simple but effective visual test: with the engine running at idle speed, turn on the headlights. Then raise engine speed to about 2000 RPM. If you notice lights significantly brighten with increased speed, this indicates dynamo weakness. In normal conditions, lighting should remain approximately stable thanks to the voltage regulator's operation.
How to Check Dynamo Wires and Connections
Ensuring Cable Integrity
Dynamo wires must be intact and free from cracks or corrosion. Visually inspect the main cable connecting the dynamo to the battery and other wires connected to it. Look for signs of burns, peeling, or breaks in insulation. Any damage to these wires may prevent proper electricity flow even if the dynamo itself is sound.
Checking Connection Points and Rust
Connection points (terminals) on the dynamo and battery must be clean and tight. Rust or oxidation on these points creates electrical resistance, reducing power transfer efficiency. Use a wire brush or sandpaper to clean terminals, then reconnect them tightly. Applying a thin layer of insulating grease on terminals prevents future rust formation.
Ensuring Proper Dynamo Installation
The dynamo must be firmly mounted on the engine. Check mounting bolts and test for any abnormal movement. An improperly mounted dynamo may vibrate excessively, causing rapid wear of internal parts and affecting dynamo belt performance. Also, ensure the dynamo belt is appropriately tightened; a belt that's too loose won't transfer power efficiently, and one too tight will put excessive pressure on bearings.
Causes of Car Dynamo Damage
Internal Brush Wear
Carbon brushes inside the dynamo contact rotating rings to transfer electricity. With long use, these brushes gradually wear until they become too short and don't properly contact the rings. This natural wear is one of the main reasons for weak dynamo performance with aging. This usually happens after several years of use or after covering long distances.
Bearing or Mechanical Parts Damage
Bearings that support shaft rotation inside the dynamo may wear or be damaged, causing excessive friction and abnormal sound. You may hear squeaking or clicking coming from the dynamo area. Damaged bearings reduce rotation efficiency and may eventually lead to complete dynamo stoppage.
Wire or Connection Problems
As mentioned, damaged or corroded wires and connections may prevent dynamo operation even if internally sound. Wire breakage, terminal rust, or weak connections are all common problems, especially in old cars or those used in humid or salty environments.
Excessive Use of Electrical Devices
Adding high-consumption electrical devices (like powerful sound systems, additional lights, or other accessories) without upgrading the dynamo may lead to its exhaustion. Continuous operation at maximum capacity accelerates internal parts wear and reduces the dynamo's lifespan. Always ensure your dynamo capacity is sufficient for all electrical loads in your car.
What Happens When You Neglect Dynamo Testing?
Neglecting to bench test a dynamo may lead to serious consequences. First, the battery will drain repeatedly, significantly reducing its lifespan and forcing you to replace it early.
Second, you may find yourself stranded in an unsuitable location with a non-working car. Third, continuous operation on low electrical voltage may damage sensitive electronic systems in the car, such as the engine control unit, navigation system, or central computer. Fourth, in severe cases, irregular voltage may burn some electrical components.
The cost of repairing this damage may far exceed the cost of replacing the dynamo itself. As with oil pump inspection, periodic testing saves you from bigger problems.
When Should You Replace the Car Dynamo?
There's no fixed lifespan for a car dynamo, but most dynamos last between 80,000 and 150,000 kilometers or 7-10 years under normal conditions. However, you may need a replacement earlier if: clear damage signs appear, such as continuous charging failure, the warning light illuminates constantly, you hear strange sounds from the dynamo, or electrical testing repeatedly fails. In some cases, the dynamo can be repaired by changing brushes or bearings, but if damage is in internal coils or essential parts, complete replacement is the best solution. Consult a specialized technician to assess the condition and make the appropriate decision. Just as you pay attention to engine oil change signs, pay attention to dynamo replacement signs.
Tips for Maintaining Your Car Dynamo
Periodic Charging System Inspection
Make charging system inspection part of your car's periodic maintenance. Every 6 months or 10,000 kilometers, ask the technician to check charging voltage, dynamo belt condition, and connection integrity. Early inspection detects problems before they escalate. Using high-quality engine oils from Lubricants Totalenergies maintains the engine and reduces vibrations that may affect the dynamo.
Avoid Excessive Electrical Loads
Don't add high-consumption electrical devices without ensuring your car's dynamo can handle them. If you plan to add a powerful sound system or other accessories, consult a specialist to determine if you need to upgrade the dynamo. Also, avoid leaving electrical devices running for long periods with the engine off, as this drains the battery and puts additional load on the dynamo at next startup.
Regular Battery Maintenance
Battery health is directly linked to the dynamo lifespan. A weak or damaged battery forces the dynamo to work harder to try charging it, accelerating its wear. Check the battery periodically, clean its terminals, and ensure the fluid level (in traditional batteries). Replace the battery at the end of its lifespan to reduce load on the dynamo.
Frequently Asked Questions About Dynamo Testing
How Do I Know if the Dynamo is Weak?
You can know through several signs: weak or flickering lights, difficulty starting the car in the morning, battery light appearing on dashboard, weak electrical systems, and rapid battery drainage. The sure method is checking the charging voltage with a multimeter; if it's less than 13.5 volts while the engine is running, the dynamo is weak.
When Should I Replace the Car Dynamo?
The dynamo should be replaced when clear damage signs appear, such as continuous charging failure, abnormal sounds, or repeated electrical testing failure. Dynamos usually last between 80,000 and 150,000 kilometers, but may need replacement earlier depending on usage conditions. A specialized technician can assess the condition and make the appropriate decision.
How Can I Check Dynamo Wires?
Inspect wires visually, looking for cracks, burns, or wear in insulation. Check connection points to ensure they're rust-free and tightly fastened. You can use a multimeter to check wire continuity; set the device to continuity mode and check each wire from end to end. If the device doesn't beep, the wire is broken and needs replacement.
Conclusion
Learning how to bench test a dynamo isn't just a routine maintenance procedure, but a necessity to maintain your car's reliability and avoid sudden breakdowns. By understanding dynamo damage signs, knowing the correct testing method, and paying attention to early symptoms, you can deal with the problem before it escalates.
Periodic maintenance, avoiding excessive loads, and battery care are all factors that extend dynamo life and ensure a reliable charging system. Remember that a sound charging system is no less important than the engine itself, as without sufficient electricity, even the best engines will stop working. Please invest in periodic testing, use original spare parts when replacement is needed, and ensure you work with specialized technicians.
Just as you care about the best way to change car oil and pay attention to blue smoke engine, your guide to piston ring repair and what it costs, take care of your car's dynamo to ensure safe and reliable trips at all times.
