Oil Pump Inspection - How to Detect Oil Pump Failure Symptoms Before It Is Too Late
Oil pump inspection is one of the maintenance tasks most drivers postpone until the problem turns into a costly breakdown. The oil pump is a component nobody sees, and nobody thinks about, yet it is the heart that pumps protection to every part of the engine.
When it begins to weaken or fail, it does not go silent entirely. It sends clear signals for those who know how to read them. In this article, you will learn how to inspect the oil pump, which symptoms require immediate attention, and how to protect your engine before it is too late.
What Is the Oil Pump and What Does It Do?
The oil pump is the mechanical pump responsible for drawing oil from the lower engine sump and pushing it at sufficient pressure to all the moving components inside the engine: bearings, camshafts, valves, and more.
Without adequate oil pressure, these components begin rubbing directly against each other and wear down at an alarming rate.
In most vehicles, the pump operates directly via the timing chain or timing belt, meaning it runs continuously throughout every engine operating cycle without pause.
This constant operation makes it susceptible to gradual wear over time and mileage, which is precisely what makes regular inspection a necessity rather than an option.
What Is the Oil Pump Lifespan?
The oil pump lifespan in modern engines that are well-maintained typically falls between 150,000 and 200,000 km. However, this figure is not guaranteed in all cases, as the pump's service life is directly affected by several factors.
The quality of oil used and how consistently it is changed is the single most influential factor. The oil pump operates using the same oil it pumps, so if that oil is degraded or laden with impurities, those impurities pass through the pump and accelerate wear on its internal gears.
A persistently low oil level, even without reaching the visible minimum mark, stresses the pump because it operates with less volume than it was designed to handle. Repeated cold starts without allowing the engine to reach normal operating temperature place additional strain on the entire lubrication system, including the pump.
Key Symptoms That Call for Immediate Oil Pump Inspection

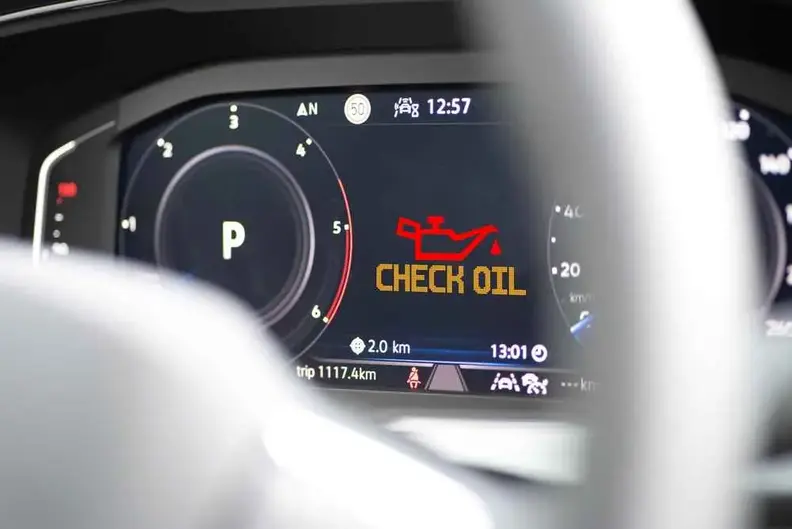

Oil Pressure Warning Light on the Dashboard
This is the clearest and most serious signal. When the oil pressure warning light illuminates, which resembles an oil can with a drop, it means oil pressure has fallen below the safe threshold. The cause may be a low oil level, a failing pump, or a clogged oil filter.
In all cases, stopping immediately and not continuing to drive is the only correct decision. For an overview of other dashboard warning symbols and their meanings, you can read 6 common warning signs on your car's dashboard.
Knocking or Metallic Sounds from the Engine
Yes, a weak oil pump does cause knocking sounds directly. When oil pressure drops, the upper engine components, such as camshafts and valves, begin receiving less oil than required, producing intermittent metallic sounds or persistent ticking, especially in the first seconds after startup. If the sound disappears after a minute of running, this suggests the pump is slow to build initial pressure. If it continues, the problem runs deeper.
Engine Running Hotter Than Usual Without Explanation
Oil does more than lubricate. It also contributes to cooling internal components that the coolant does not reach directly. When oil pressure weakens due to a struggling pump, the temperature of certain components begins to rise even if the main temperature gauge does not move initially.
If you notice a temperature rise accompanied by any of the previous symptoms, oil pump inspection should be at the top of the diagnostic list.
Frequently Dropping Oil Level Between Changes
If you find yourself adding oil repeatedly despite no visible oil spots beneath the car, there may be an internal leak from a gasket or seal within the pump assembly.
This type of leak does not appear externally but gradually reduces the volume of oil available for the pump to circulate.
Oil That Appears Unusually Thin or Discoloured Very Quickly After a Change
When you pull the dipstick and find the oil looking abnormally thin or showing unusual colour shortly after a recent change, this can indicate that the pump is not circulating oil efficiently and the oil is being subjected to excess thermal stress from inadequate distribution.
How to Inspect the Oil Pump and Test Engine Oil Pressure
The initial inspection begins with you before visiting a service centre. Here is what you can do yourself.
The first step is to check the oil level and condition using the dipstick with the engine cold. A level sitting correctly between the two marks and a healthy oil colour are the starting points. If the level is low, add the appropriate amount and monitor whether the pressure symptoms disappear.
The second step is to listen to the engine after a cold start. A healthy pump builds pressure within two to three seconds of ignition. If metallic sounds persist beyond that point, the matter requires specialist inspection.
Testing engine oil pressure accurately requires a mechanical oil pressure gauge connected in place of the original oil pressure sensor. A normal reading on a warm engine at idle falls between 25 and 65 PSI.
A reading below 20 PSI calls for urgent inspection. This test is performed by a specialist service centre and should not be attempted without the appropriate expertise and tools.
The Role of Oil Quality in Oil Pump Health
The oil pump does not operate in isolation from the oil it pumps. Oil quality and consistent change intervals are the two variables with the greatest impact on pump longevity.
Degraded or contaminated oil accelerates wear on the pump's internal gears, and oil with an unsuitable viscosity can impair the pump's ability to maintain the required pressure at high temperatures.
Total Quartz 7000 10W-40 offers an ideal balance for protecting the entire oil system, including the pump. Its semi-synthetic formulation combines synthetic base oils for high thermal stability with high-quality mineral oils, meaning better resistance to oxidation and breakdown compared to straight mineral oils.
Its API SN/CF and ACEA A3/B4 specifications ensure broad compatibility with engines requiring 10W-40, including high-mileage engines and vehicles operating in hot climates. Its viscosity stability at high temperatures means the pump always finds oil at the correct consistency to circulate, not a thinned-out fluid that has lost its properties. Drain intervals of 8,000 to 12,000 km mean the engine and pump always operate with oil in its optimal condition.
When Does the Oil Pump Need Replacing Rather Than Just an Oil Change?
Inspection and oil changes resolve many issues, but there are situations where replacing the pump is the only solution.
If the oil warning light persists after verifying the level and adding fresh oil, the pump itself may be the source of the problem. If an oil pressure test consistently shows low readings despite a correct oil level, this indicates the pump can no longer generate adequate pressure. If a technician finds worn gears or damaged internal components during direct inspection, replacement is the only path forward.
The cost of replacing an oil pump is relatively high because accessing it typically requires disassembling parts of the engine. This is precisely the reason why early preventive inspection costs far less than waiting for the pump to fail.
The Connection Between Oil Pump Health and the Rest of the Engine
The oil pump does not work in isolation. It is part of an integrated system. When the pump weakens, everything is affected: bearings wear faster, camshafts sustain damage, and valve problems begin appearing that can resemble the symptoms of a faulty spark plug.
To confirm whether the issue lies with the pump rather than other components, you can read Your Spark Plug Needs Your Attention!, to understand the difference in symptoms.
Additionally, using oil with the wrong specifications or viscosity multiplies the strain on the pump. The tool is " Is It The Right Engine Oil For My Car? helps you reach the right choice based on your specific vehicle and engine type.
Practical Tips for Keeping Your Oil Pump in Good Health
Stick to oil change intervals without delay. Degraded oil is the pump's primary enemy. Check oil level every two to three weeks and do not wait for a dashboard warning to tell you the level has dropped. Never ignore a new sound appearing in the engine, particularly after extended use or following an oil change.
When purchasing a used vehicle, request a full inspection that includes an oil pressure test, as the pump's service history is rarely disclosed by sellers. In hot climates like Saudi Arabia and Egypt, always choose an oil with high thermal stability that maintains its viscosity under extreme temperatures.
Conclusion
Oil pump inspection is not a task reserved for automotive enthusiasts. It is preventive maintenance that every driver should practice. The symptoms are clear to those who know what to look for: the oil warning light, knocking sounds, rising temperatures, and a repeatedly dropping oil level.
Acting when any of these symptoms appear saves your engine from damage that costs many times more than a simple inspection and consistent oil changes using oil with the correct specifications, such as Total Quartz 7000 10W-40, which provides the pump and every engine component with the protection they deserve.
