Crankshaft Position Sensor – Simple Steps to Detect the Fault Accurately
The crankshaft position sensor is one of the smallest components in the engine bay, and one of the most consequential. When it fails, it rarely announces itself with a single obvious symptom. Instead, it hides behind multiple overlapping signs that can misdirect diagnosis and waste both time and money on unnecessary repairs.
Knowing how to test a crankshaft position sensor correctly saves you time, allows you to diagnose the fault before visiting a workshop, and gives your technician accurate information that speeds up the repair. This guide covers everything: what the sensor does, how to recognize failure symptoms, step-by-step testing methods, and the preventive tips that extend its life.
What Is the Crankshaft Position Sensor and Why Does It Matter?

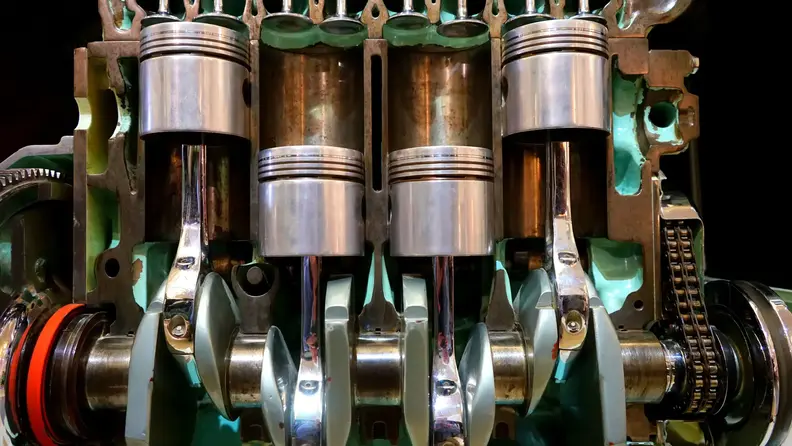

The Function of the Crankshaft Position Sensor in the Engine
The crankshaft position sensor, also referred to as the crank position sensor or CPS sensor, is an electronic sensor that continuously monitors the position and rotational speed of the crankshaft at every moment during engine operation. It transmits this data in real time to the Engine Control Unit (ECU), which depends on it to make instantaneous decisions about ignition timing and fuel injection quantity. Without this data stream, the ECU cannot manage the engine efficiently, and in many cases cannot start it at all.
Its Role in Determining Ignition and Injection Timing
The crank angle sensor tells the ECU precisely when each piston reaches its Top Dead Center (TDC) position and when it descends to its lowest point, information that allows the system to time the ignition spark and fuel injection event with extraordinary precision. This timing accuracy is what determines combustion efficiency, engine torque output, and fuel consumption. Any disruption in the sensor's signal means a direct disturbance to this finely calibrated equation that the entire engine management system depends upon.
Why Do You Need to Test the Crankshaft Position Sensor?
The Sensor's Impact on Engine Operation
The modern engine cannot operate independently of its sensor network. The ECU uses the crankshaft position sensor as its primary positional reference for all management operations. When the sensor transmits a weak, intermittent, or incorrect signal, the ECU enters a state of uncertainty that manifests immediately in engine behavior. Early testing determines whether presenting symptoms originate from the sensor itself or from another cause, preventing misdiagnosis and unnecessary parts replacement.
The Relationship Between the CPS Sensor and Vehicle Performance
Overall vehicle performance, from acceleration response to idle smoothness, is directly linked to the signal accuracy of the crankshaft position sensor. An engine operating with a weakened crank position sensor performs below its actual capability: it consumes more fuel, produces higher emissions, and subjects its components to accelerated wear from imprecise combustion timing. Periodic sensor inspection is a legitimate part of comprehensive engine maintenance that should not be overlooked.
Signs of a Weak or Failing Crankshaft Position Sensor
Difficulty Starting or Complete Failure to Start
Among the clearest indicators that a crankshaft position sensor test is needed is repeated difficulty starting the engine, particularly in the morning or after the vehicle has been stationary for an extended period. When the sensor transmits a weak signal, the ECU is delayed in determining crankshaft position and delays both injection and ignition accordingly. In more severe failure cases, the engine may refuse to start entirely because the ECU receives no signal confirming that the engine is rotating.
Sudden Engine Stall While Driving
A sudden, complete engine stall during normal driving without any prior warning is one of the most dangerous symptoms associated with crank position sensor failure. This stall occurs because the signal has been abruptly cut off from the ECU, which immediately shuts down injection and ignition as a protective response. The engine may restart after a few moments or refuse entirely; in either case, the situation demands immediate professional inspection.
Loss of Power During Acceleration
A weak or fluctuating crank angle sensor signal confuses the ECU's calculation of the correct fuel quantity needed when engine load increases. The result is incomplete combustion that reduces engine torque noticeably, particularly during acceleration from a standstill or during hill climbing. The vehicle feels sluggish and unresponsive despite pressing the accelerator fully, with power delivery that feels inconsistent rather than smooth.
Engine Misfiring and Rough Running
Misfiring occurs when one or more cylinders fail to fire at their correct timing interval or fail to combust at all. A damaged CPS sensor sends intermittent signals to the ECU, causing it to miss injection and ignition events or fire them at incorrect moments. The driver experiences this as a distinct stumble or hesitation at low speeds or at idle, often accompanied by noticeable vibration through the vehicle's body and steering wheel.
How to Test a Crankshaft Position Sensor Step by Step
Testing the Sensor Using a Multimeter
Testing the crankshaft position sensor with a multimeter is the most accurate direct measurement method and is carried out as follows:
- Switch the engine off completely and allow the vehicle to cool.
- Carefully disconnect the sensor connector.
- Set the multimeter to resistance measurement mode (Ohms).
- Place the probes on both sensor terminals and compare the reading to the manufacturer's specifications in the service manual. Normal values typically range from 200 to 900 ohms, depending on sensor type and vehicle make.
- A reading outside this range, a reading of zero, or an infinite reading confirms a failed sensor requiring replacement.
Testing the Live Signal During Engine Cranking
The sensor's live output signal can be tested using the multimeter set to AC voltage mode while the engine is being cranked:
- Set the multimeter to AC Voltage mode.
- Place the probes on both sensor terminals while operating the starter motor without full ignition engagement.
- A healthy crank position sensor produces a fluctuating voltage signal typically between 0.5 and 1 volt AC during cranking.
- A complete absence of signal or a flat, non-fluctuating reading indicates a fault in the sensor itself or in its wiring circuit.
Verifying Wiring and Connection Integrity
Before concluding the sensor has failed, inspect its wiring harness and connector carefully. Look for:
- Frayed, cracked, or broken wire insulation from heat or vibration exposure.
- Corroded, oxidized, or loose connector terminals that prevent consistent electrical contact.
- Moisture intrusion inside the connector causes intermittent electrical faults.
Just as counterfeit engine oil mimics symptoms of genuine mechanical problems, a single loose connection can replicate CPS sensor failure symptoms convincingly enough to mislead even an experienced technician.
How to Check a Crankshaft Position Sensor Without Advanced Tools
Observing Engine Behavior at Startup
Even without measurement equipment, the crank position sensor condition can be estimated from engine behavior patterns. If the engine is difficult to start, then runs normally for a period, then stalls suddenly, then restarts with difficulty, this intermittent pattern strongly suggests a sensor that is losing its signal periodically rather than failing. A totally failed sensor typically produces a consistent inability to start rather than this come-and-go pattern.
Inspecting the Sensor Connector for Cleanliness
Disconnect the sensor connector and examine it visually. White or green oxidation on the metal terminals indicates deteriorated electrical contact quality. Clean the terminals gently with fine-grit abrasive paper or a dedicated contact cleaner spray, then reconnect firmly. In some cases, this straightforward step resolves intermittent crank angle sensor symptoms without any parts replacement.
Disconnecting the Sensor and Observing the Change
On some older vehicles, disconnecting the sensor while the engine is running provides a behavioral clue: if the engine stalls immediately upon disconnection, the ECU was actively receiving a signal from it. If engine behavior shows no change upon disconnection, the ECU was already not receiving a usable signal, confirming the sensor had effectively failed before the disconnection.
Causes of Crankshaft Position Sensor Failure
Exposure to Extreme Heat
The crankshaft position sensor is positioned in proximity to the engine block in a thermally demanding environment. Sustained extreme heat degrades the insulation around the sensor's internal coil and progressively weakens its output. In Saudi Arabia's climate, where external temperatures alone can exceed 50°C in summer, this thermal stress factor operates faster and more aggressively than in temperate climates. Using the correct engine oil viscosity for your climate contributes to lower overall engine operating temperatures, reducing thermal stress on all surrounding sensors.
Wiring and Connector Damage
The fine wires connecting the CPS sensor to the engine harness are vulnerable to degradation from heat cycling, engine vibration, and contact with hot components. A partially broken wire or deteriorated insulation causes intermittent electrical faults that are harder to diagnose than complete failures, because symptoms appear and disappear without a consistent pattern that points clearly to the sensor.
Contamination and Debris Buildup
The crank angle sensor operates through magnetic sensing of the crankshaft's reluctor ring teeth. Any accumulation of metallic debris, carbon deposits, or oil residue on the sensor face reduces the clarity of the magnetic signal it generates. Regular sensor area cleaning is part of comprehensive engine maintenance. Choosing the right engine oil for your car reduces oil leak occurrence that can contaminate the sensor surface and degrade signal quality over time.
What Happens When You Ignore a Faulty Crankshaft Position Sensor?
Sudden Vehicle Stall
Ignoring the early symptoms of crankshaft position sensor failure exposes you to the risk of a sudden, complete engine stall while driving. This can happen at the worst possible moment, on a highway at speed or in a low-visibility area, creating a direct safety risk for both vehicle occupants and other road users that far outweighs the cost of prompt sensor replacement.
Increased Fuel Consumption
An ECU relying on a weak or inaccurate crank position sensor signal injects fuel quantities that are calculated on incorrect positional data, raising consumption without any corresponding performance benefit. Just as using the wrong fuel type harms the engine cumulatively over time, a faulty position sensor stresses the combustion system progressively through the same slow, cumulative mechanism.
Progressive Engine Performance Deterioration
Irregular combustion from incorrect ignition timing generates unequal power pulses between cylinders, causing vibration and reducing total torque output. Over an extended period, this unbalanced combustion accelerates wear on valves, pistons, and the exhaust system beyond their designed operational loads, damage that compounds silently until it becomes expensive to address.
Does the Crankshaft Position Sensor Cause Loss of Power?
The Sensor's Direct Effect on Ignition Timing
Yes, a failing crankshaft position sensor causes a direct and measurable reduction in engine power. Ignition timing is calculated by the ECU based primarily on crank angle sensor data. If this data arrives late or is inaccurate, the spark fires either too early or too late relative to the optimal piston position, and the combustion event produces less mechanical work per cycle than the engine was designed to deliver.
The Relationship Between Torque and Combustion Efficiency
Peak torque is produced when combustion occurs at precisely the moment the piston is in its most mechanically advantageous position, typically just after TDC on the power stroke. Any deviation from this timing moment means a portion of the combustion energy is lost as heat rather than converted into crankshaft rotation. This explains why drivers immediately notice a heavier, less responsive vehicle feel when the CPS sensor begins to fail, and why that feel returns to normal following sensor replacement.
When Should You Replace the Crankshaft Position Sensor?
When Symptoms Recur After Wiring Repair
If symptoms of stalling, misfiring, or starting difficulty persist despite wiring inspection, connector cleaning, and connection re-securing, the sensor itself is the definitive fault. Replacing it with an original or approved equivalent unit is the correct final solution, not a further attempt to repair around it.
When the Sensor Fails to Respond During Testing
A multimeter reading outside the specified resistance range, a zero reading, an infinite resistance reading, or a complete absence of an AC voltage signal during cranking are all conclusive findings of sensor failure. There is no viable repair for the sensor itself; replacement with a correct original-specification unit is the only reliable resolution.
Tips for Protecting the Crankshaft Position Sensor
Schedule Regular Sensor System Checks
As part of every scheduled service, request a fault code scan using an OBD diagnostic tool. Fault codes P0335 or P0336 relate specifically to crankshaft position sensor circuit faults. Detecting these codes early provides the opportunity to address the developing issue before it escalates to a sudden stall or a no-start condition.
Protect the Sensor from Oil and Debris Contamination
When performing engine bay maintenance, avoid spraying chemicals, water, or lubricants near the sensor's location. Periodically clearing the sensor area with compressed air prevents the gradual deposit buildup that progressively weakens signal output and shortens sensor operational life.
Use Only Genuine or Approved Replacement Parts
When replacing the crank position sensor, never accept an unbranded, low-cost substitute. An original or manufacturer-approved equivalent guarantees signal accuracy and full compatibility with the ECU. A substandard sensor may generate an inaccurate signal that continues to confuse engine management even after replacement, an error that costs twice in both parts and diagnostic time.
Frequently Asked Questions About Crankshaft Position Sensor Problems
How Do I Know If My Crankshaft Position Sensor Is Faulty?
The clearest indicators are repeated difficult starting, sudden engine stall during normal driving, noticeable misfiring or rough idle, and an illuminated Check Engine light. Definitive confirmation comes from reading stored fault codes with an OBD scanner or testing the CPS sensor directly with a multimeter using the steps outlined in this guide.
What Are the Signs of a Weak Crankshaft Position Sensor?
Weakness symptoms, which differ from complete failure, include intermittent engine performance issues that appear and disappear without consistency, misfiring that occurs at low speeds and then clears, variable starting difficulty from one day to the next, and a slight unexplained increase in fuel consumption. These intermittent symptoms are the most diagnostically challenging and typically require professional electronic diagnosis to confirm.
Does the Crankshaft Position Sensor Cause Loss of Power?
Yes, directly. A damaged or weakened crank angle sensor sends inaccurate positional data to the ECU, causing ignition timing to deviate from optimal. The result is reduced power output per combustion cycle, a sluggish throttle response, and increased fuel consumption, all of which resolve automatically once the sensor is replaced with a correctly functioning original unit.
Conclusion
Understanding how to test a crankshaft position sensor and recognizing the signs of a failing crank position sensor before it causes a sudden breakdown are two of the most practical diagnostic skills a driver can develop. From intermittent misfiring and power loss to complete engine stall, every symptom the sensor produces is an opportunity to act before the situation becomes an emergency on the road.
